# Triton Scanning Guide (Application Development Mode)

> For scanning parts one at a time

<h2 id="triton-access-levels">
  Purpose of Application Development mode
</h2>

Application Development mode allows you to perform custom CT scans outside of predetermined part programs. This flexible mode is ideal for research and development (R\&D), inspecting single or one-off parts, and fine-tuning scan parameters to establish optimal settings for new product lines.

### **Access Requirement**

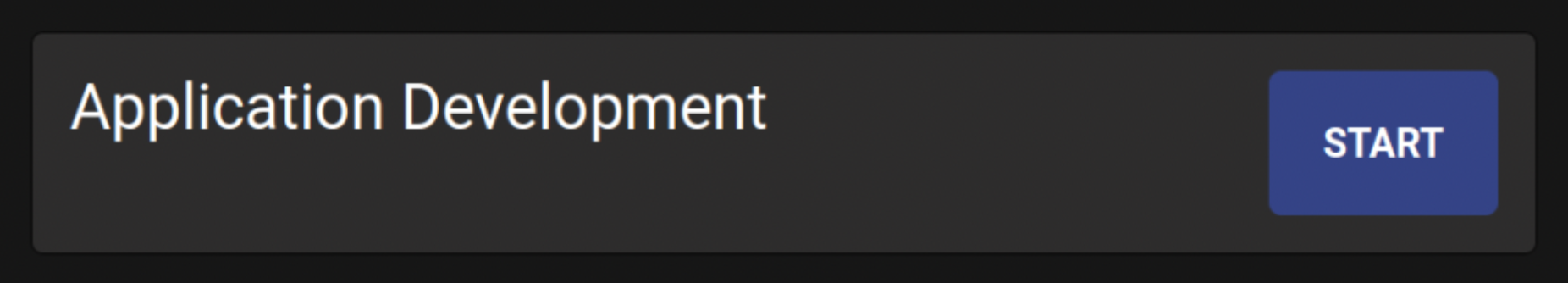

Application Development mode is restricted to users logged in with **Supervisor** privileges. Once logged in, select **Application Development** at the bottom of the main menu.

<Frame>
  <img src="https://mintcdn.com/lumafield/m_tnRILsFUsnjfbG/images/image-24.png?fit=max&auto=format&n=m_tnRILsFUsnjfbG&q=85&s=ec0be8e6a3594c6ab64d3897bea7add5" alt="Image" title="Image" className="mx-auto" style={{ width:"66%" }} width="1852" height="334" data-path="images/image-24.png" />
</Frame>

### **Adjusting scan settings**

Application Development Mode on the Triton is functionally identical to standard single-part scanning on a Neptune. For a complete walkthrough on configuring scan parameters and optimizing your manual runs, refer to the [Neptune Positioning Guide](/neptune/neptune-positioning-guide) and [**Neptune Auto Scan Settings Guide**](/neptune/neptune-auto-scan-settings-guide).

### **Step-by-step scanning procedure**

1. **Fixture the part:** Securely mount your part onto a conversion pallet
2. **Clear the stage:** Press and hold the **Air Release** button to release the airlock on the rotary stage, then remove any existing pallet
3. **Load the pallet:** Place your fixtured pallet onto the rotary stage
4. **Lock in place:** Release the **Air Release** button to engage the airlock. Manually check the pallet to ensure it is fully locked and secure
5. **Configure settings:** Select your desired scan parameters on the interface (refer to the *Neptune Settings Guide* for parameter recommendations)
6. **Start the scan:** Review your parameters and initiate the scan
